  Products  Bulldozer

Medium Bulldozer

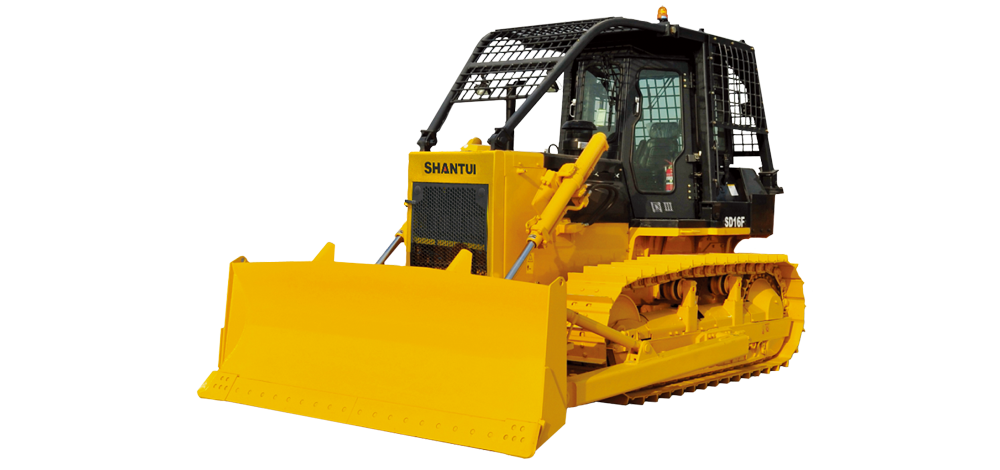

SD16F

Overall weight(kg)

18100
Engine brand

WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)

131/1850

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.

Adaptability to diverse working conditions

Optional equipment such as an angle blade and winch can be added as needed. The machine’s large ground clearance and the inclusion of a forest cab enhance its suitability for forest working conditions.

Parameter

View online

Parameter	SD16F
Overall weight(kg)	18100
Engine brand	WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)	131/1850
Machine external dimensions(mm)	5350x3455x3032
Track center distance(mm)	1880
Track shoe width(mm)	560
Ground contact length(mm)	2635
Fuel tank capacity(L)	315
Blade type	Straight tilting blade/Angle Blade
Blade capacity(m³)	3.2
Emissions (Indicated as per international standards)	Eu stageⅡ
