  Products  Bulldozer

Medium Bulldozer

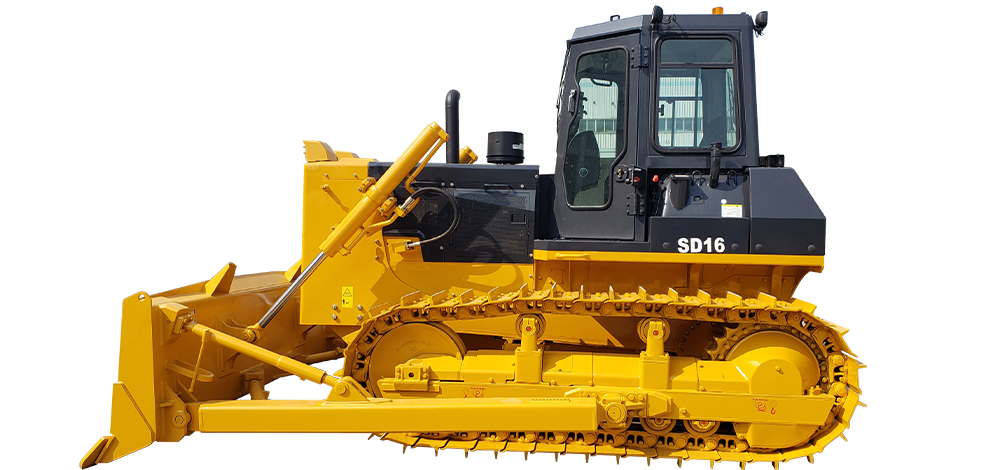

SD16

Overall weight(kg)

16400
Engine brand

WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)

131/1850

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse working conditions such as clay, frozen soil, and sandy soil. The chassis system is stable with large ground clearance, demonstrating excellent passability;

Parameter

View online

Parameter	SD16
Overall weight(kg)	16400
Engine brand	WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)	131/1850
Machine external dimensions(mm)	514034553032
Track center distance(mm)	1880
Track shoe width(mm)	510/560/610
Ground contact length(mm)	2430
Fuel tank capacity(L)	315
Blade type	Straight tilting/U-shaped Blade
Blade capacity(m³)	3.2/4.8
Emissions (Indicated as per international standards)	Eu stageⅡ
