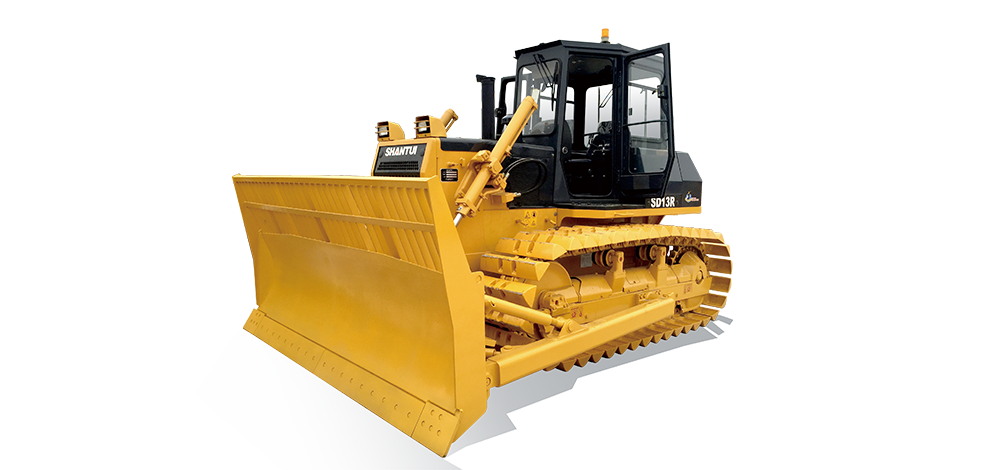

SD13R
Small Bulldozer
SD13R
  • Overall weight(kg)
    15200
  • Engine brand
    DONGFENG CUMMINS 6CTA8.3-C145
  • Rated power/rated speed(kW/rpm)
    108/1900
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Shantui’s self-developed drive system demonstrates reliable quality. A dedicated engine is equipped, offering substantial traction. Shantui’s self-developed four wheels and one track are built to be durable;
Ease of maintenance and operation comfort
Components such as fuel filters and air filters are positioned on the same side, allowing for one-stop maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;
Adaptability to diverse working conditions
Featuring a large chassis ground clearance and an anti-entanglement device, the machine delivers outstanding passability. It is equipped with a sanitation blade and provides the option for a ripper. The cab is well-sealed, ensuring its suitability for sanitation working conditions.
Parameter
Parameter SD13R
Overall weight(kg) 15200
Engine brand DONGFENG CUMMINS 6CTA8.3-C145
Rated power/rated speed(kW/rpm) 108/1900
Machine external dimensions(mm) 4492*2580*3000
Track center distance(mm) 1880
Track shoe width(mm) 700
Ground contact length(mm) 2365
Fuel tank capacity(L) 280
Blade type R blade
Blade capacity(m³) 6.9
Emissions (Indicated as per international standards) China-II
