  Products  Bulldozer

Small Bulldozer

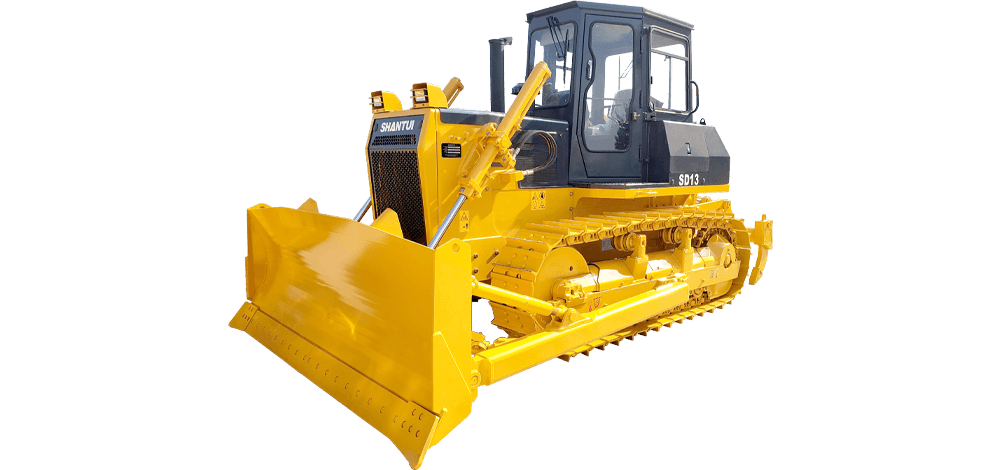

SD13

Overall weight(kg)

13700
Engine brand

SHANGCHAI SC8D143G2B1
Rated power/rated speed(kW/rpm)

105/1900

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Shantui’s self-developed drive system demonstrates reliable quality. A dedicated engine is equipped, offering substantial traction. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

Components such as fuel filters and air filters are positioned on the same side, allowing for one-stop maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for challenging working conditions such as frozen soil and clay. The chassis has large ground clearance, ensuring smooth travel and excellent passability;

Parameter

View online

Parameter	SD13
Overall weight(kg)	13700
Engine brand	SHANGCHAI SC8D143G2B1
Rated power/rated speed(kW/rpm)	105/1900
Machine external dimensions(mm)	446023452980
Track center distance(mm)	1885
Track shoe width(mm)	460
Ground contact length(mm)	2380
Fuel tank capacity(L)	280
Blade type	Straight-tilt blade/ Angle blade
Blade capacity(m³)	3/2.5
Emissions (Indicated as per international standards)	China-II
