  Products  Wheel Loader

Medium Loader

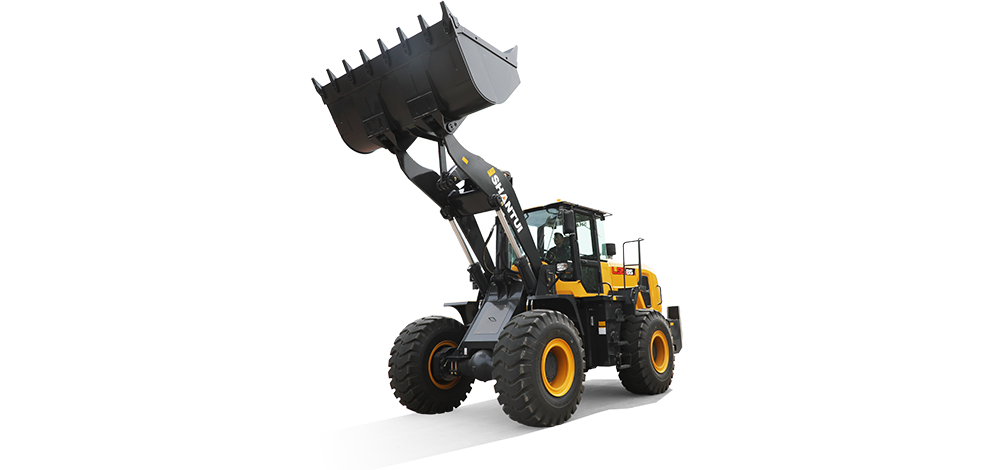

L55-B5

Total power(kw)

162
Operating weight(kg)

17600/19000(*)
Bucket capacity(m³)

3.6/4.5(*)

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The machine is equipped with a WD10 engine customized by Weichai, an affiliated enterprise within the group, which is optimally matched with a planetary transmission self-developed by Shantui. This combination forms an energy-saving and efficient golden core powertrain that enhances operational efficiency.

Ease of maintenance and operation comfort

The integrated cab provides 15% more interior space, ensuring better sealing and noise reduction. The placement of air filters and diesel filters on the same side as the engine, along with externally located brake calipers on the drive axle, contributes to easier maintenance.

Adaptability to diverse working conditions

The axle box is reinforced and front and rear frames are strengthened to ensure high load-bearing capacity, making it well-suited for a wide range of operating environments such as earthmoving, coal, ore, and aggregated rocks.

Parameter

View online

Parameter	L55-B5
Total power(kw)	162
Operating weight(kg)	17600/19000(*)
Bucket capacity(m³)	3.6/4.5(*)
External dimensions(mm)	8210 x 3020 x 3450/8200 x 3020 x 3520(*)
Rated loading capacity(t)	5
Maximum dumping height(mm)	2910/2920(*)
Dumping distance(mm)	1290/1260(*)
Subtotal(s)	10.5
Wheelbase(mm)	3270/3250(*)
Maximum speed(km/h)	fwd:38,rev:15
Emissions (Indicated as per international standards)	Tier 2 / Stage II
(*)	*: The technical specifications on the left correspond to a wheel loader with a 3.6m³ bucket / The technical specifications on the right correspond to a wheel loader with a 4.5m³ bucket.
