  Products  Wheel Loader

Medium Loader

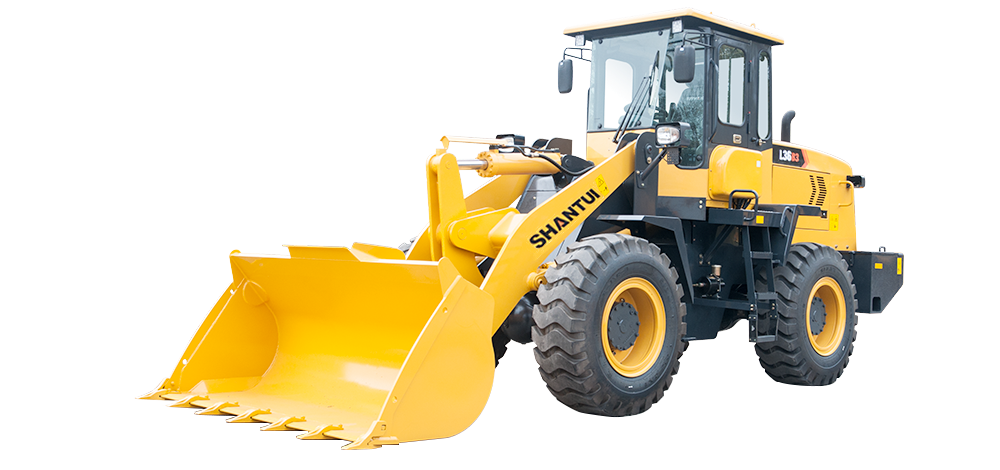

L36-B3

Total power(kw)

92
Operating weight(kg)

10600/11000 (*)
Bucket capacity(m³)

1.8/2.5 (*)

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The machine is equipped with a fuel-efficient engine customized by Weichai, an affiliated enterprise within the group, which is optimally matched with the efficient fixed-axis transmission self-developed by Shantui. This combination forms an energy-saving and efficient golden core powertrain that enhances operational efficiency.

Ease of maintenance and operation comfort

All models in the series are equipped with a wide-opening side guard, offering a spacious maintenance area. Air filters, diesel filters, oil filters, and fine transmission filters are all within easy reach, facilitating convenient maintenance.

Adaptability to diverse working conditions

A variety of attachments, including forks, log grapples, and grass trimmers, can be installed to cater to various operational needs in the fields of agriculture, forestry, and construction.

Parameter

View online

Parameter	L36-B3
Total power(kw)	92
Operating weight(kg)	10600/11000 (*)
Bucket capacity(m³)	1.8/2.5 (*)
External dimensions(mm)	7160/7310 (*)×2440×3240
Rated loading capacity(t)	3.2
Maximum dumping height(mm)	2990/2950 (*)
Dumping distance(mm)	980/1090 (*)
Subtotal(s)	9.0
Wheelbase(mm)	2700
Maximum speed(km/h)	fwd:37, rev:28
Emissions (Indicated as per international standards)	Tier 2 / Stage II
(*)	*:The technical specifications on the left correspond to a wheelloader with a 1.8m³ bucket/The technical specifications on the right correspond to a wheel loader with a 2.5m³ bucket.
