L16-B2

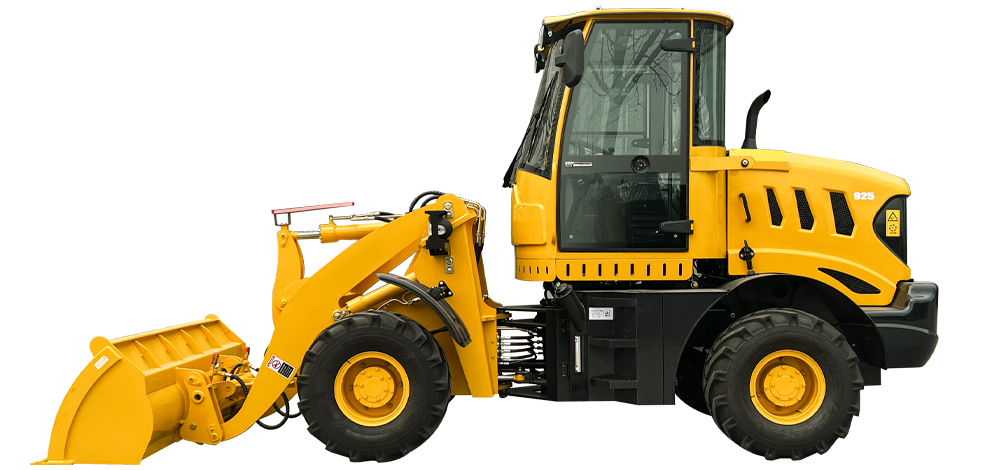

Small Loader
L16-B2
  • Total power(kw)
    65
  • Operating weight(kg)
    4780
  • Bucket capacity(m³)
    1
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The energy-saving and efficient engine is perfectly matched with the transmission and axles, resulting in rapid power response, exceptional stability, and high operational efficiency.
Ease of maintenance and operation comfort
The rear hood is designed with a large-angle upward flipping feature, offering spacious maintenance area. The optimized layout of filter elements renders convenient and efficient maintenance.
Adaptability to diverse working conditions
This model is characterized by its exceptional maneuverability, making it well-suited for operations in confined and narrow spaces. It can be easily equipped with various attachments, making it versatile and applicable to a wide range of applications, including municipal engineering, agriculture and animal husbandry, sanitation, and building construction.
Parameter
Parameter L16-B2
Total power(kw) 65
Operating weight(kg) 4780
Bucket capacity(m³) 1
External dimensions(mm) 6146×2040×2880
Rated loading capacity(t) 1.6
Maximum dumping height(mm) 3100
Dumping distance(mm) 1075
Subtotal(s) 11.2
Wheelbase(mm) 2310
Maximum speed(km/h) 20
Emissions (Indicated as per international standards) Eu stage II
