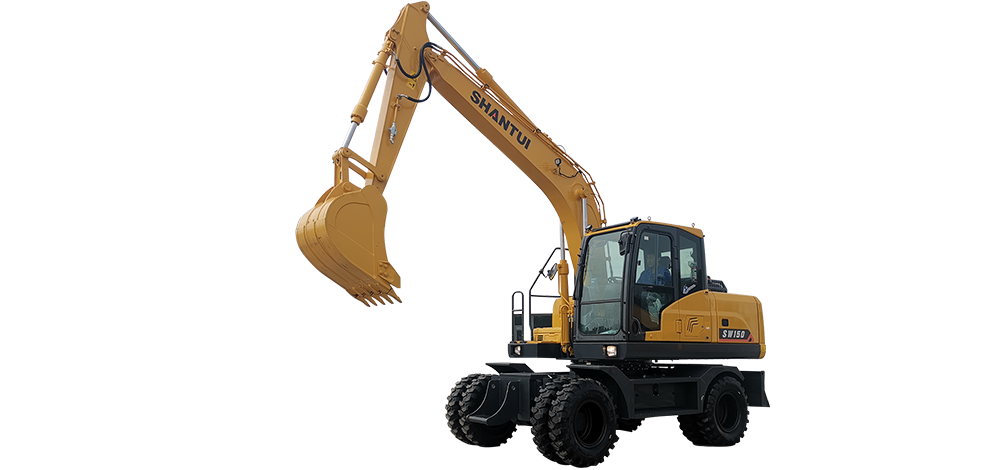

SW150
Wheel Excavator
SW150
  • Operating weight(kg)
    13500
  • Engine power(kW/rpm)
    129/2200
  • Bucket capacity(m³)
    0.6
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The Weichai engine guarantees superior performance, while the Rexroth travel motor and ZF transmission ensure exceptional reliability and durability.
Ease of maintenance and operation comfort
Engine oil filters and fuel filters are centrally located for integrated system maintenance. Hydraulic system filter elements and engine filter elements are located in the same compartment, providing one-door access and a centralized layout that saves time and effort!
Adaptability to diverse working conditions
The machine comes standard with a hydraulic lock for the bulldozer blade. It features a large-capacity brake accumulator that enhances braking safety by providing a greater reserve. It incorporates advanced adjustment technology specifically designed for crawler excavators and is equipped with a self-developed controller that perfectly matches its control logic.
Parameter
Parameter SW150
Operating weight(kg) 13500
Engine power(kW/rpm) 129/2200
Bucket capacity(m³) 0.6
External dimensions(mm) 7960*2528*3220
Bucket rod digging force(kN) 72
Bucket digging force(kN) 102.5
Rotating speed(r/min) 0-11.3
Travel speed(km/h) 10/37
Maximum digging height(mm) 8755
Maximum digging distance(mm) 7950
Maximum digging depth(mm) 4715
Emissions (Indicated as per international standards) Eu stage IIIA
