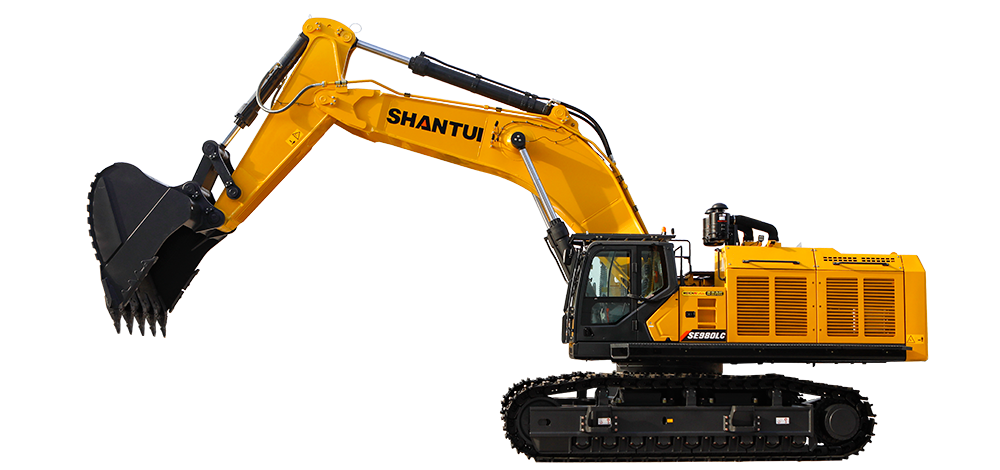

SE980LCW
Mining Excavator
SE980LCW
  • Operating weight(kg)
    97800
  • Engine power(kW/rpm)
    571/1800
  • Bucket capacity(m³)
    6.5
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Equipped with a high-power engine, the machine delivers robust power, exceptional efficiency and energy savings. Additionally, it is equipped with a large-displacement main pump and a fully electronic control hydraulic system to achieve precise matching for optimal performance.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen, offering multiple working mode selections, as well as features such as an electric heating air-suspension seat and a high-power air conditioning system. The machine provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Parameter
Parameter SE980LCW
Operating weight(kg) 97800
Engine power(kW/rpm) 571/1800
Bucket capacity(m³) 6.5
External dimensions(mm) 13720*4200*4990
Bucket rod digging force(kN) 417
Bucket digging force(kN) 480
Rotating speed(r/min) 0-6.9
Travel speed(km/h) 2.8/4.1
Maximum digging height(mm) 12735
Maximum digging distance(mm) 12620
Maximum digging depth(mm) 7150
Emissions (Indicated as per international standards) Eu stage IIIA
