SE800LCW

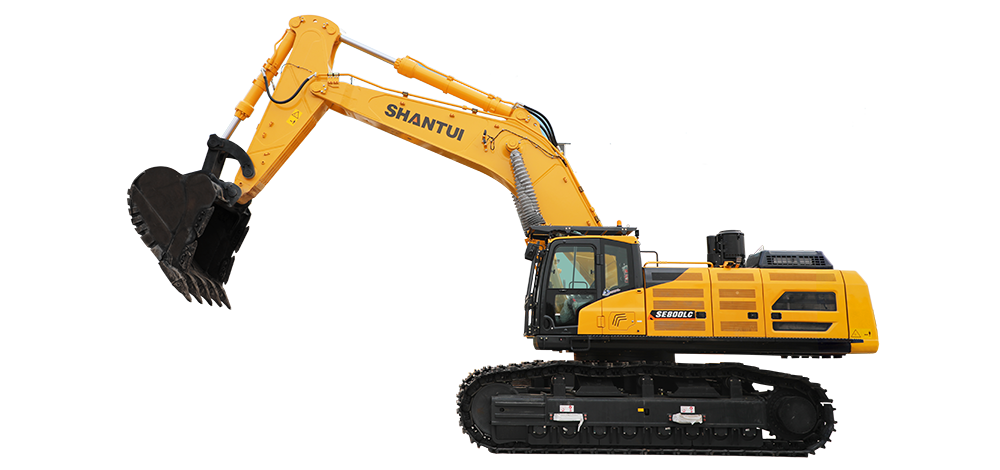

Mining Excavator
SE800LCW
  • Operating weight(kg)
    76500
  • Engine power(kW/rpm)
    566/1900
  • Bucket capacity(m³)
    5
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The golden combination of Weichai and Linde, supplemented by the fully electronic control positive-flow hydraulic system, ensures a perfect synergy between load and flow, resulting in significantly improved response speed.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch capacitive touchscreen, featuring a full-fitting IPS screen with wide viewing angles and high brightness, ensuring excellent visibility even under sunlight. The machine also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, breaker hammers, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Parameter
Parameter SE800LCW
Operating weight(kg) 76500
Engine power(kW/rpm) 566/1900
Bucket capacity(m³) 5
External dimensions(mm) 12600*4310*4700
Bucket rod digging force(kN) 350
Bucket digging force(kN) 420
Rotating speed(r/min) 0-7.2
Travel speed(km/h) 3.2/4.7
Maximum digging height(mm) 11820
Maximum digging distance(mm) 11700
Maximum digging depth(mm) 7150
Emissions (Indicated as per international standards) Eu stage IIIA
