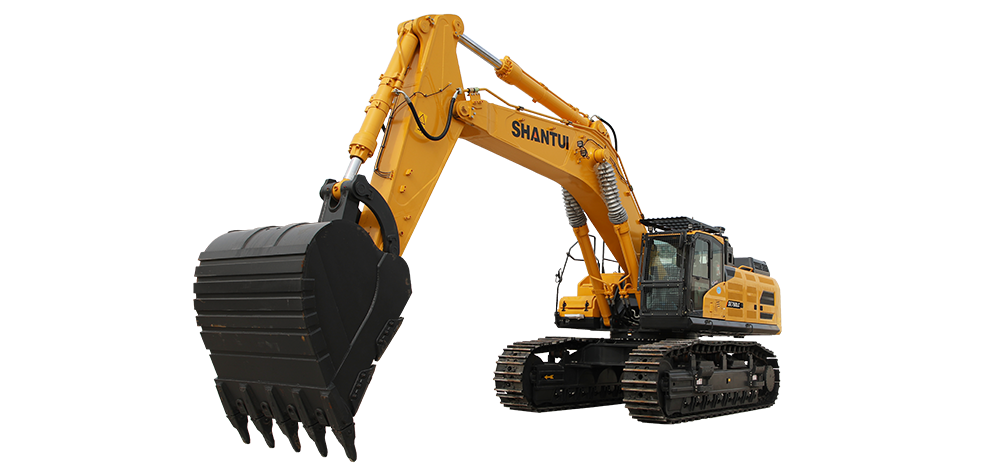

SE750LC

Operating weight(kg)

72500
Engine power(kW/rpm)

377/1800
Bucket capacity(m³)

4.5

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The machine is equipped with a high-power six-cylinder engine, globally renowned brand hydraulic components, and an electronic control positive-flow hydraulic system, ensuring reliable performance.

Ease of maintenance and operation comfort

Equipped with a 10.1-inch high-definition touchscreen, the machine provides a wide viewing angle and a customizable interface. The spacious maintenance area allows for easy access during inspections and maintenance.

Adaptability to diverse working conditions

It can be configured with wide tracks, rock arms, rippers, and other attachments to meet various requirements.

Parameter

View online

Parameter	SE750LC
Operating weight(kg)	72500
Engine power(kW/rpm)	377/1800
Bucket capacity(m³)	4.5
External dimensions(mm)	1126043104740
Bucket rod digging force(kN)	365
Bucket digging force(kN)	420
Rotating speed(r/min)	0-7
Travel speed(km/h)	3.2/4.7
Maximum digging height(mm)	11070
Maximum digging distance(mm)	11530
Maximum digging depth(mm)	6835
Emissions (Indicated as per international standards)	Eu stage IIIA
