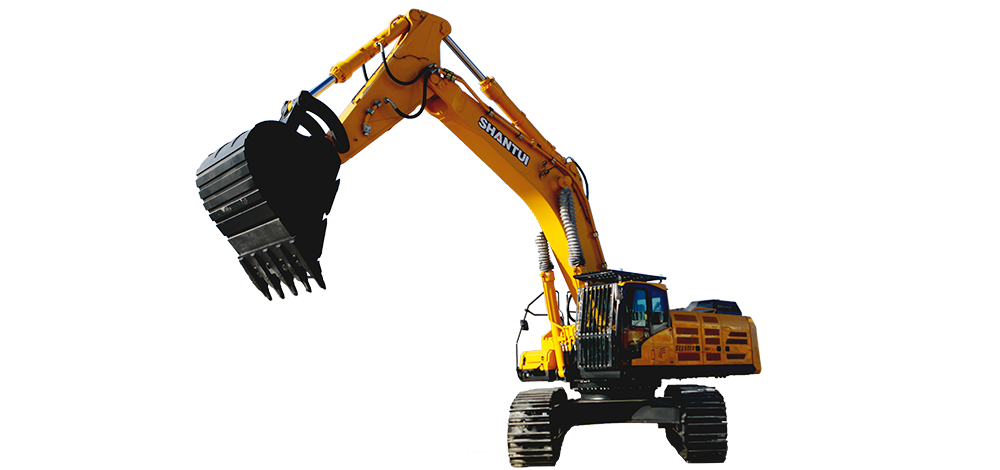

SE600HW
Large Excavator
SE600HW
  • Operating weight(kg)
    55000
  • Engine power(kW/rpm)
    562/1900
  • Bucket capacity(m³)
    3.2
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Equipped with the exclusively customized Weichai WP14T engine, the machine offers a large power reserve and robust power. It is paired with the industry’s largest main pump, guaranteeing rapid response, stable performance, and outstanding fuel efficiency.
Ease of maintenance and operation comfort
The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. It is equipped with an extra-large capacity fuel filter elements and a high-precision triple-stage whole-process filter element, both of which are centrally positioned near the left-side door for easy maintenance.
Adaptability to diverse working conditions
With heavy-duty mining attachments, a mining-specific reinforced chassis, and Shantui’s world-class four wheels and one track, the machine is extensively utilized in earthwork projects and large-scale mining sites.
Parameter
Parameter SE600HW
Operating weight(kg) 55000
Engine power(kW/rpm) 562/1900
Bucket capacity(m³) 3.2
External dimensions(mm) 12060*3450*4030
Bucket rod digging force(kN) 285
Bucket digging force(kN) 310
Rotating speed(r/min) 0-8.7
Travel speed(km/h) 3.3/5.6
Maximum digging height(mm) 10335
Maximum digging distance(mm) 11475
Maximum digging depth(mm) 7120
Emissions (Indicated as per international standards) Eu stage IIIA
