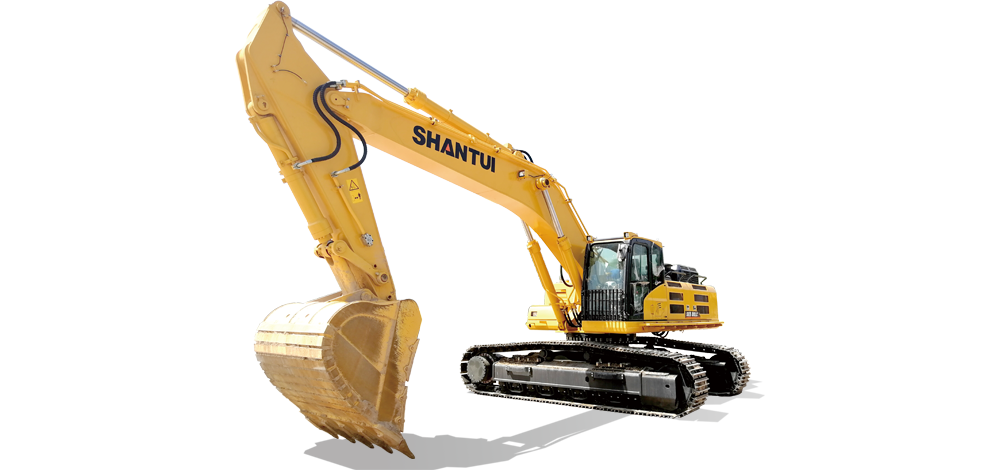

SE500LCW
Large Excavator
SE500LCW
  • Operating weight(kg)
    49500
  • Engine power(kW/rpm)
    562/1900
  • Bucket capacity(m³)
    2.8
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with a customized Weichai P13H high-pressure common rail s, delivering high power, robust performance, rapid response, and excellent fuel economy.
Ease of maintenance and operation comfort
The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. The fuel filters and oil filters are centrally positioned at a remote location, facilitating easy maintenance and reducing costs.
Adaptability to diverse working conditions
The machine is equipped with Shantui’s world-class four wheels and one track system, double support rollers, fully protected track chains, and mining structural components. It is extensively utilized in diverse work environments such as mining, water conservancy, and road and bridge construction.
Parameter
Parameter SE500LCW
Operating weight(kg) 49500
Engine power(kW/rpm) 562/1900
Bucket capacity(m³) 2.8
External dimensions(mm) 12175*3465*3890
Bucket rod digging force(kN) 285
Bucket digging force(kN) 340
Rotating speed(r/min) 0-8.3
Travel speed(km/h) 3.6/5.9
Maximum digging height(mm) 10890
Maximum digging distance(mm) 11730
Maximum digging depth(mm) 7420
Emissions (Indicated as per international standards) Eu stage IIIA
