SE335LC

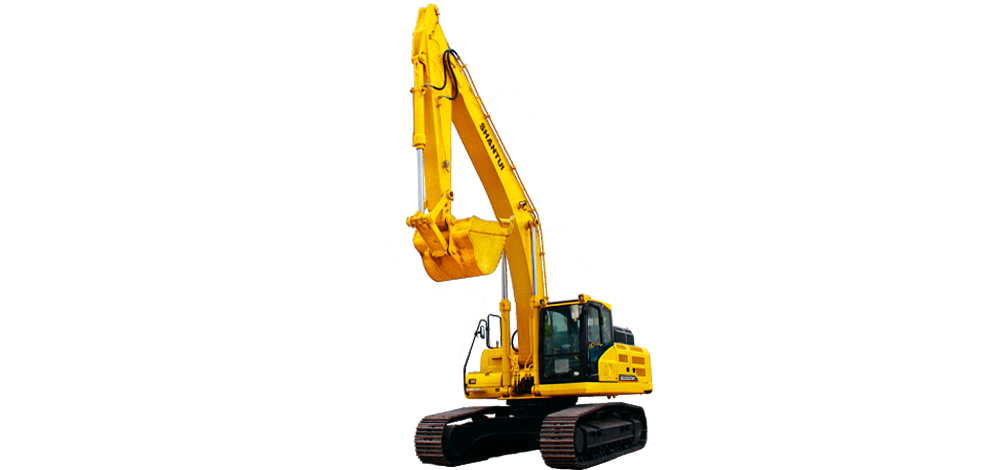

Large Excavator
SE335LC
  • Operating weight(kg)
    34500
  • Engine power(kW/rpm)
    241/2000
  • Bucket capacity(m³)
    1.6
  • Characteristic
  • Parameter

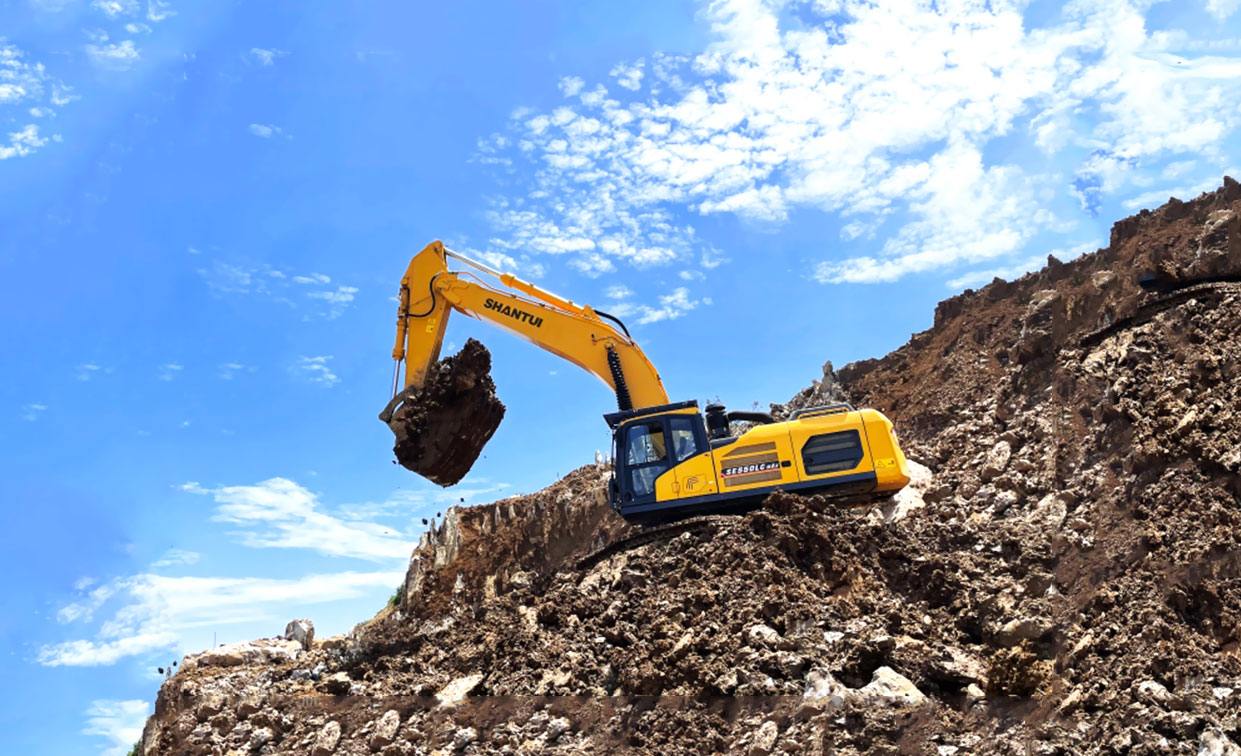

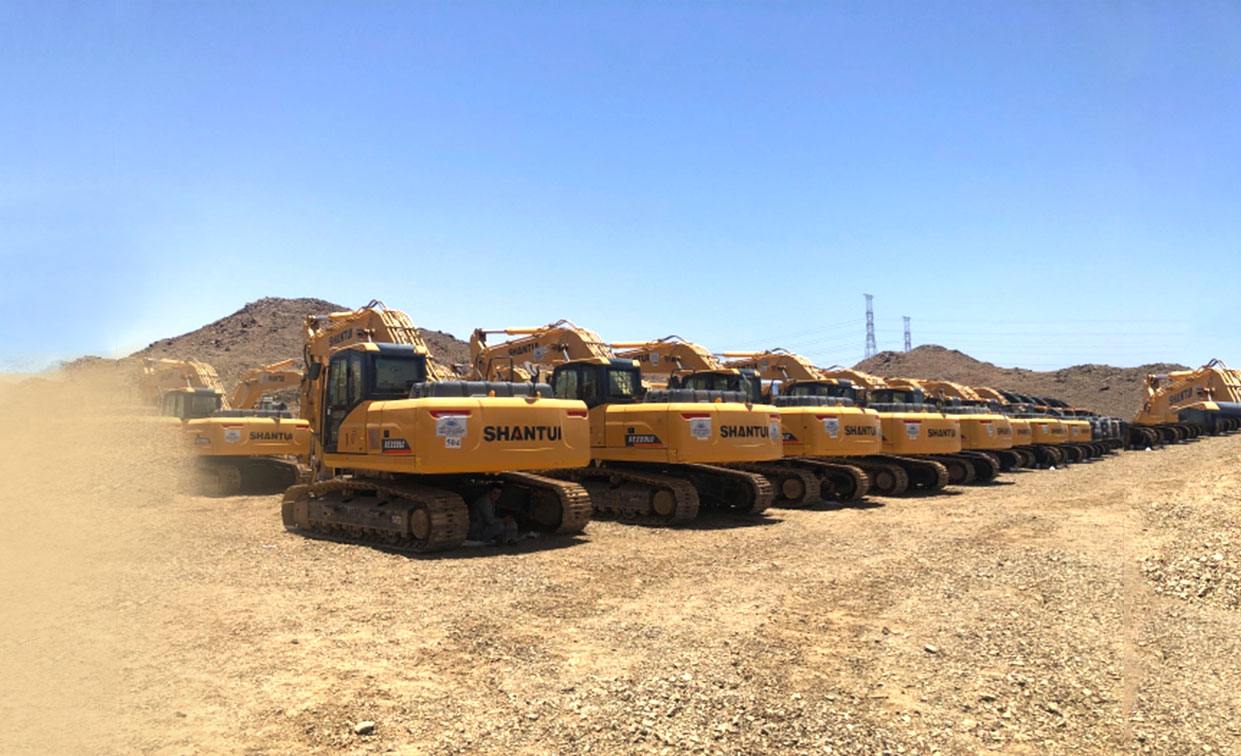

  • Case
  • Inquiry
Characteristic
Configuration selling point
Equipped with a high-power engine from an industry leading brand, the machine boasts exceptional performance and robust power, all while ensuring fuel efficiency. The machine is equipped with renowned hydraulic core components that have been optimally matched to be reliable and endurable. The 37T slewing bearing provides higher load-bearing capacity and enhanced reliability.
Ease of maintenance and operation comfort
The machine is equipped with an intelligent electronic control system, enabling convenient operation and precise actions. The carefully adjusted machine actions deliver smooth and coordinated performance. Furthermore, the machine offers a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
The reinforced working device and other attachments can be easily combined, providing flexibility for various working conditions. The machine provides multiple working modes and gear settings to meet the requirements of diverse working conditions.
Parameter
Parameter SE335LC
Operating weight(kg) 34500
Engine power(kW/rpm) 241/2000
Bucket capacity(m³) 1.6
External dimensions(mm) 11260*3200*3770
Bucket rod digging force(kN) 210
Bucket digging force(kN) 234
Rotating speed(r/min) 0-10
Travel speed(km/h) 3.7/5.5
Maximum digging height(mm) 10030
Maximum digging distance(mm) 10840
Maximum digging depth(mm) 7425
Emissions (Indicated as per international standards) Eu stage II
