  Products  Excavator

Medium Excavator

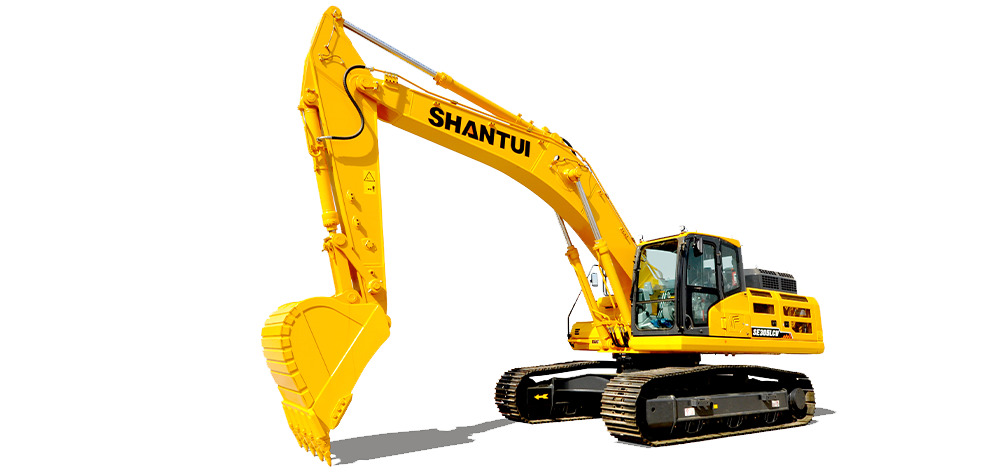

SE305LCW

Operating weight(kg)

32000
Engine power(kW/rpm)

199/2000
Bucket capacity(m³)

1.3/1.5

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The Weichai WP7 engine, customized and calibrated, is utilized in the machine to ensure higher efficiency and lower fuel consumption. The new-generation main pump incorporates leading technology, resulting in improved reliability.

Ease of maintenance and operation comfort

The machine is equipped with a 10.1-inch touchscreen, enabling improved human-machine interaction and convenient operation. It also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.

Adaptability to diverse working conditions

The machine offers an easy combination with booms, bucket rods, buckets, and other attachments of varying specifications. It provides multiple working modes and gear settings to meet the requirements of diverse working conditions.

Parameter

View online

Parameter	SE305LCW
Operating weight(kg)	32000
Engine power(kW/rpm)	199/2000
Bucket capacity(m³)	1.3/1.5
External dimensions(mm)	1088032003850
Bucket rod digging force(kN)	155
Bucket digging force(kN)	210
Rotating speed(r/min)	0-10
Travel speed(km/h)	3.3/5.5
Maximum digging height(mm)	10030
Maximum digging distance(mm)	10580
Maximum digging depth(mm)	6760
Emissions (Indicated as per international standards)	Eu stage IIIA
