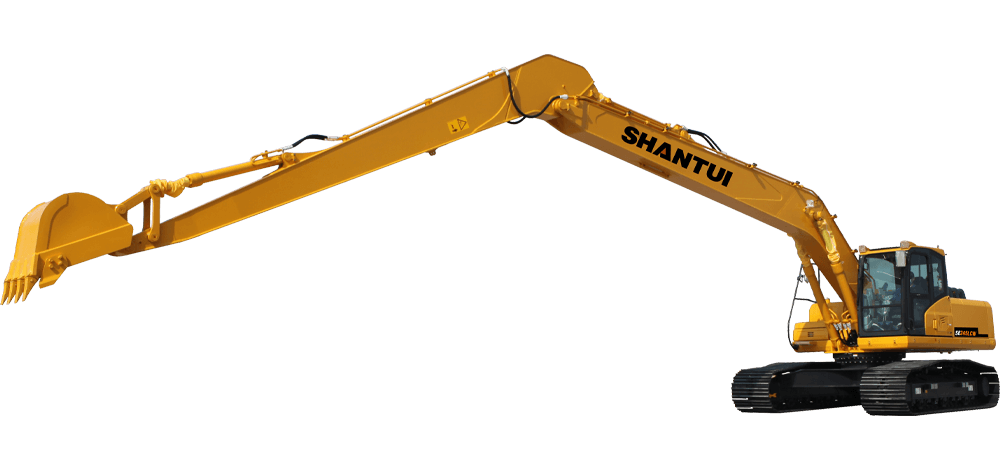

SE245LCW
Medium Excavator
SE245LCW
  • Operating weight(kg)
    26500
  • Engine power(kW/rpm)
    190/2000
  • Bucket capacity(m³)
    1.3
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with a customized large-torque, high-power engine that is both efficient and fuel-saving. It features a positive-flow hydraulic system with upgraded core component technology, ensuring enhanced performance and durability.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch touchscreen, enabling improved human-machine interaction and convenient operation. It also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
The machine offers an easy combination with booms, bucket rods, buckets, and other attachments of varying specifications. It provides multiple working modes and gear settings to meet the requirements of diverse working conditions.
Parameter
Parameter SE245LCW
Operating weight(kg) 26500
Engine power(kW/rpm) 190/2000
Bucket capacity(m³) 1.3
External dimensions(mm) 9985*3235*3180
Bucket rod digging force(kN) 125
Bucket digging force(kN) 172
Rotating speed(r/min) 0-11
Travel speed(km/h) 3.5/5.5
Maximum digging height(mm) 10180
Maximum digging distance(mm) 10198
Maximum digging depth(mm) 6864
Emissions (Indicated as per international standards) Eu stage IIIA
