SE215

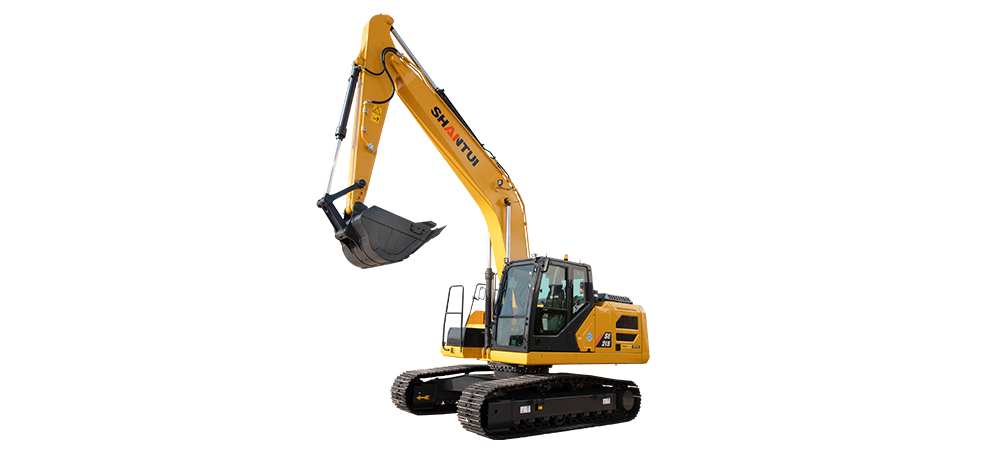

Medium Excavator
SE215
  • Operating weight(kg)
    21900
  • Engine power(kW/rpm)
    124/2050
  • Bucket capacity(m³)
    1.05
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with a dedicated large-displacement engine and a precisely calibrated electronic control positive-flow hydraulic system, resulting in higher operational efficiency.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen that integrates various functions. It features a fully injection-molded interior, and is equipped with a high-power air conditioner, providing a comfortable driving and riding experience. The spacious maintenance area allows for easy access during inspections and maintenance.
Adaptability to diverse working conditions
The reinforced design of structural components ensures high reliability. The machine offers an easy combination with booms, bucket rods, buckets, and other attachments of varying specifications to adapt to diverse working conditions.
Parameter
Parameter SE215
Operating weight(kg) 21900
Engine power(kW/rpm) 124/2050
Bucket capacity(m³) 1.05
External dimensions(mm) 9605*2980*3070
Bucket rod digging force(kN) 99/107
Bucket digging force(kN) 137/148
Rotating speed(r/min) 0-11
Travel speed(km/h) 3.3/5.1
Maximum digging height(mm) 10100
Maximum digging distance(mm) 9865
Maximum digging depth(mm) 6490
Emissions (Indicated as per international standards) Eu stage IIIA
