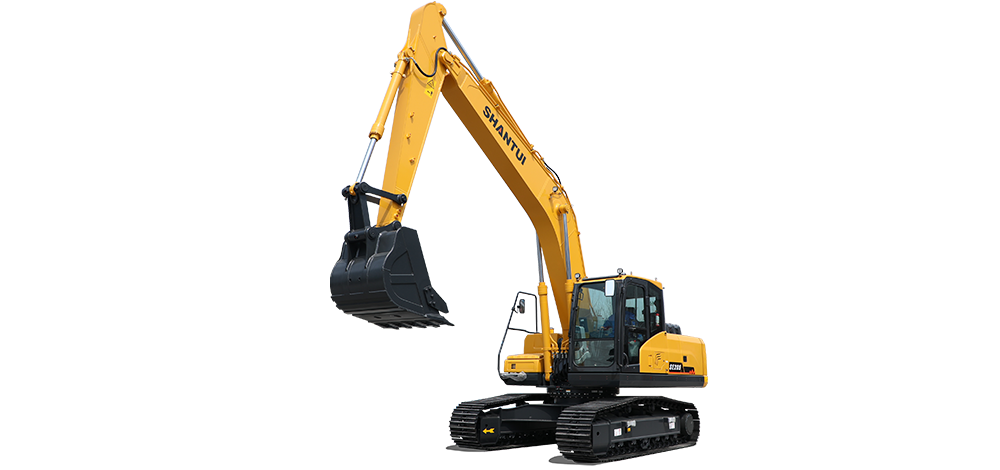

SE205W
Medium Excavator
SE205W
  • Operating weight(kg)
    21200
  • Engine power(kW/rpm)
    129/2000
  • Bucket capacity(m³)
    0.9
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with a positive flow system and a self-developed, new-generation integrated optimization control system that combines the engine, main pump, and main valve, which ensures exceptional efficiency and low fuel consumption.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen that integrates various functions. It features a fully injection-molded interior, and is equipped with a high-power air conditioner, providing a comfortable driving and riding experience. The spacious maintenance area allows for easy access during inspections and maintenance.
Adaptability to diverse working conditions
The reinforced design of structural components ensures high reliability. The machine offers an easy combination with booms, bucket rods, buckets, and other attachments of varying specifications to adapt to diverse working conditions.
Parameter
Parameter SE205W
Operating weight(kg) 21200
Engine power(kW/rpm) 129/2000
Bucket capacity(m³) 0.9
External dimensions(mm) 9625*2800*3100
Bucket rod digging force(kN) 99
Bucket digging force(kN) 137
Rotating speed(r/min) 0-11
Travel speed(km/h) 3.5-5.6
Maximum digging height(mm) 10070
Maximum digging distance(mm) 9860
Maximum digging depth(mm) 6490
Emissions (Indicated as per international standards) Eu stage IIIA
