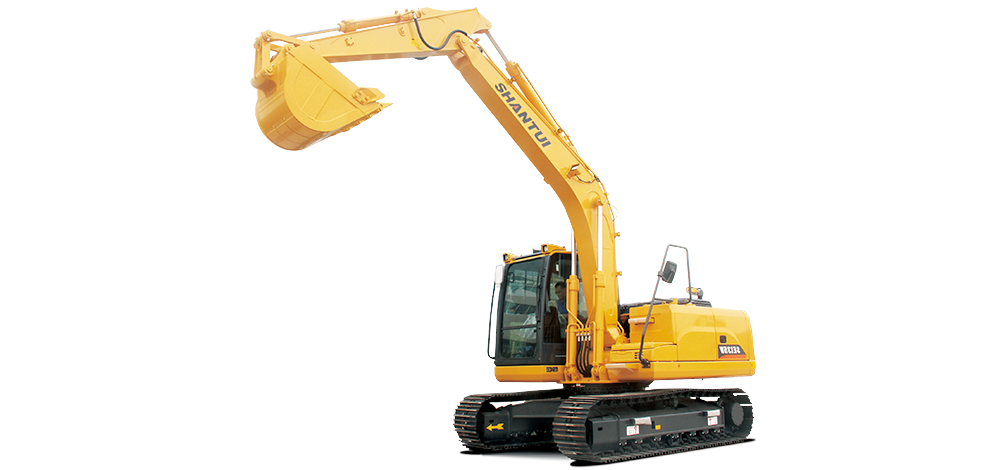

SE135W
Small Excavator
SE135W
  • Operating weight(kg)
    13500
  • Engine power(kW/rpm)
    92/2200
  • Bucket capacity(m³)
    0.6
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with an internationally renowned engine known for its high power and efficient, environmentally friendly, and energy-saving performance. It is equipped with a globally renowned hydraulic system and an intelligent control system, ensuring a high-level matching between the power system and the hydraulic system. This combination enhances operational efficiency and reduces fuel consumption.
Ease of maintenance and operation comfort
The engine hood is supported by dual gas cylinders and opens backward, featuring lightweight opening and wide opening angle to facilitate easy maintenance. Fuel filter elements, oil filter elements, and pilot filter elements are all centrally located, allowing for all maintenance and replacements to be completed at the same location
Adaptability to diverse working conditions
With its heavy weight, the machine demonstrates good stability. It is equipped with hydraulic cylinders with a large diameter to provide large digging force, and features the industry’s largest bucket capacity. The machine offers multiple preset working modes, enabling its versatile application in diverse working conditions, including excavation, leveling, crushing, and lifting operations.
Parameter
Parameter SE135W
Operating weight(kg) 13500
Engine power(kW/rpm) 92/2200
Bucket capacity(m³) 0.6
External dimensions(mm) 7860*2500*2855
Bucket rod digging force(kN) 70
Bucket digging force(kN) 97
Rotating speed(r/min) 11.3
Travel speed(km/h) 3.25/5.2
Maximum digging height(mm) 8495
Maximum digging distance(mm) 8300
Maximum digging depth(mm) 5490
Emissions (Indicated as per international standards) Eu stage IIIA
