  Products  Excavator

Mini Excavator

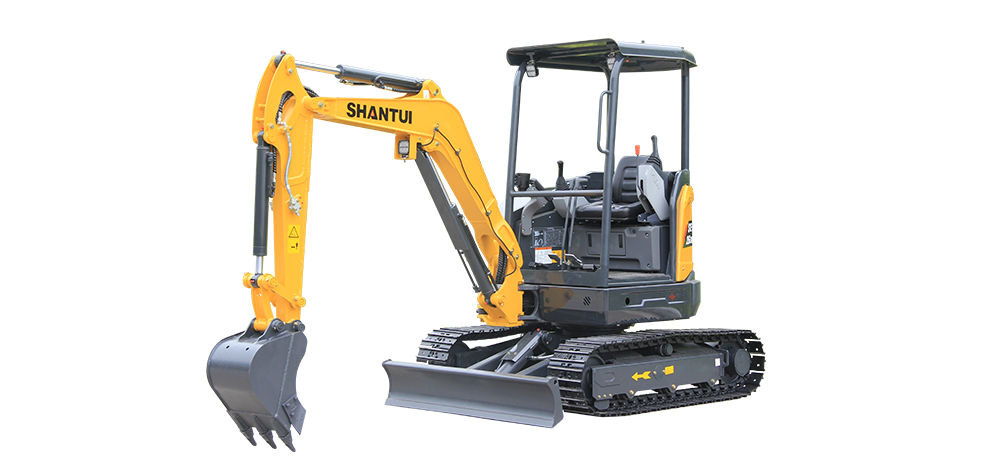

SE26SR

Operating weight(kg)

2700
Engine power(kW/rpm)

14.6/2400
Bucket capacity(m³)

0.065

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.

Ease of maintenance and operation comfort

The machine is equipped with the mechanical suspension seat, the high-power hot air system, and the 7-inch LCD touchscreen. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.

Adaptability to diverse working conditions

The standard configuration includes zero-tail swing and boom swing functions. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.

Parameter

View online

Parameter	SE26SR
Operating weight(kg)	2700
Engine power(kW/rpm)	14.6/2400
Bucket capacity(m³)	0.065
External dimensions(mm)	420015502480
Bucket rod digging force(kN)	14.8
Bucket digging force(kN)	24
Rotating speed(r/min)	0-10
Travel speed(km/h)	2.3/4.0
Maximum digging height(mm)	4390
Maximum digging distance(mm)	4680
Maximum digging depth(mm)	2800
Emissions (Indicated as per international standards)	EU stage V/T4F
